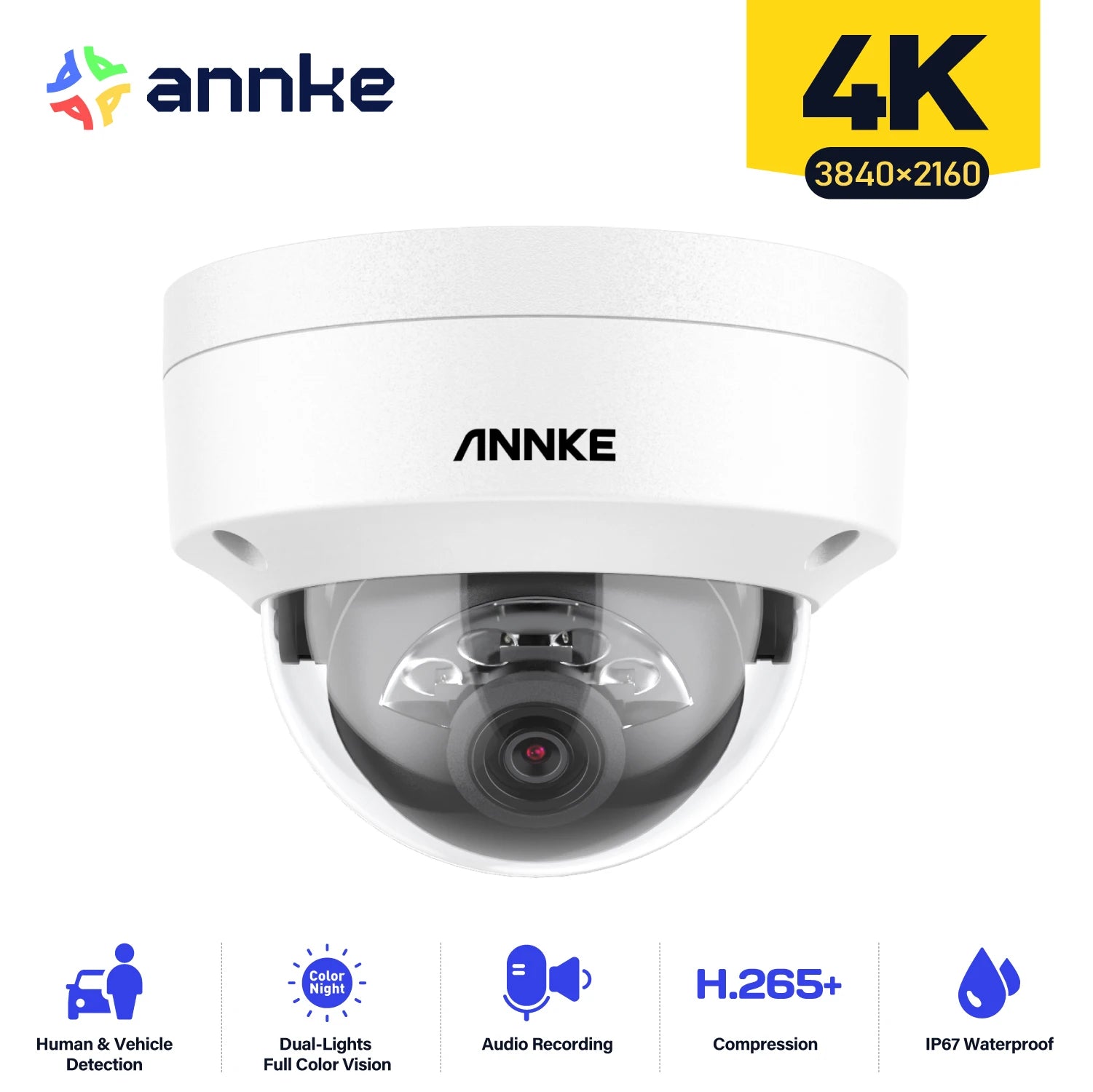

ANNKE C800 4K PoE Outdoor Security Camera With Dual Light
ANNKE C800 4K PoE Outdoor Security Camera With Dual Light
Couldn't load pickup availability
You’ll capture ultra‑sharp 4K security footage day and night with the ANNKE C800 Dual‑Light PoE outdoor camera.

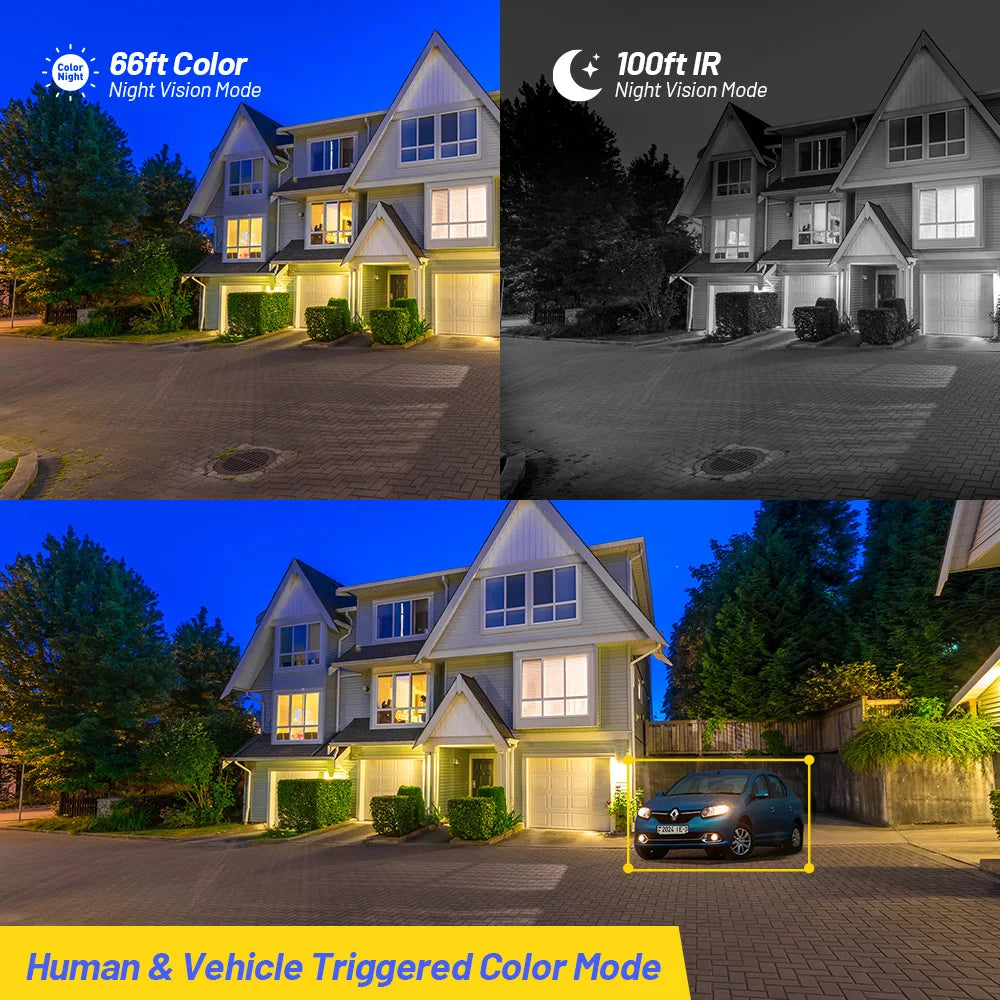

- 4K clarity with color night vision 8MP (3840×2160) footage from a 4 mm F1.6 lens, 78° diagonal FOV, and up to 30 m of dual‑light for vivid nighttime images.
- Smart motion detection Motion Detection 2.0 detects humans and vehicles to minimize false alerts and trigger timely notifications.

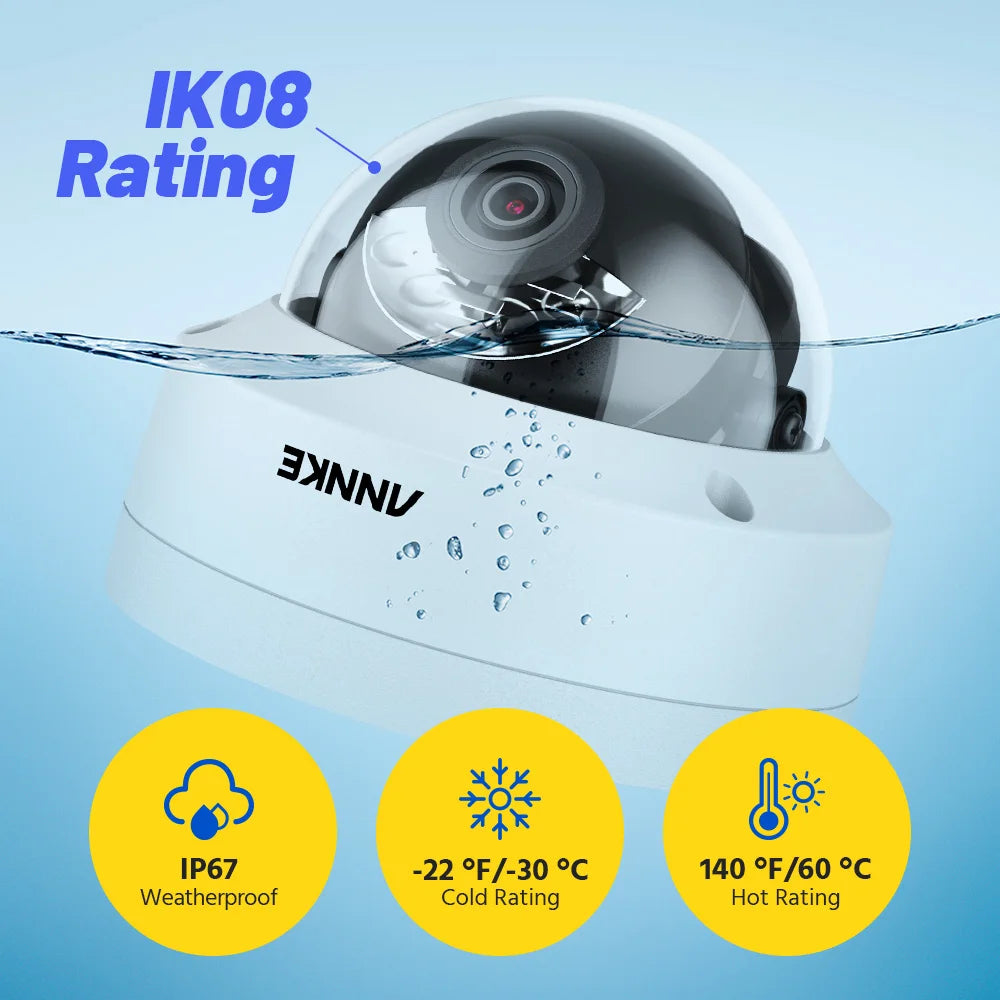

- Rugged outdoor reliability IP67 waterproof, IK08 impact resistance, wide operating range (-30°C to 60°C), plus a built‑in microphone and microSD support up to 512 GB.
- Flexible power and open integration PoE (802.3af) or DC12V, onboard storage up to 512 GB, and Open Network Video Interface API (Profiles S/T/G) for easy setup with Android/iOS apps.
IP Camera | ||
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
4 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 & IK08 |
|
Dimension (L X W X H) |
Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") |
|
Weight |
1.2 lb./550 g |
|
